GRAIN BIN
COMBO LINES
FOR STIFFENER & WALL SHEETS

ASC Machine Tools offers Grain Bin Combo Rollforming Lines that allow the production of Sidewall Sheets and light to medium gauge Stiffeners on the same piece of equipment.

​

These lines are equipped with a subplated Rollformer, Post-Cut Shear and a modular Post-Punch System that accomodates both profile shapes.

​

​Down below you will get an overview of the typical Line Components in a heavy Gauge Stiffener Rollforming Line.



Please contact us so to discuss all available options for your specific production requirements!

ASC Uncoiler Combo Grain Bin

UNCOILER & COIL CAR

- 10K to 30K Drag Brake Uncoiler

- Hydraulic Expansion

- 48" Max Coil Width

- Optional Coil Car

- Pneumatic Drag Brake

- Lateral Travel +/- 6 inches

- Coil Keepers for narrow Coils

ASC Coil Car - Combo Grain B. Wall Stiffener Line 1.jpg
ASC Straightener - Combo Grain B. Wall Stiffener.JPG

STRAIGHTENER & FEEDER TOWER

- Telescoping Peeler Table

- Powered Nip-Arm

- 5-Roll Straightener

- Variable Frequency Drive

- "Nose" Bender

- Capacity Range: 10 - 20 Gauge

​

ASC Straightener Wall Stiffener Line_edited.jpg
ASC Rollformer- Combo Grain B. Wall Stiffener Line 3.JPG

ROLLFORMER

- Gearbox Drive System

- Subplated Design to Produce Stiffener and Wall Sheet Profile

- Quick Disconnect Jaw-Couplings

- Variable Speed

- D2 Roller Die Tooling

- Material Thickness Detection (Optional)

ASC Rollformer- Combo Grain B. Wall Stiffener Line 2.JPG
ASC Stiffener Tooling - Grain bin 2.jpg

SUBPLATED TOOLING SETS

- 2 complete Sets of Subplated Stands, Shafts and D2 Roller Die Tooling for Wall Sheet and Stiffener Profile

- Quick Disconnect Jaw Couplings

- Change Over Time: Approx 30 minutes

​

ASC Wall Sheet Tooling - Grain bin.jpg
ASC Shear - Combo Wall Stiffener Line.JPG

POST-CUT SHEAR

- Hydraulic Post-Cut Shear

- Two 4-Post Die Sets for Stiffener and Wall Sheet Profile

- Stand Alone Hydraulic Power Unit

ASC Shear - Combo Grain B. Wall Stiffener Line 2.JPG
ASC Entry Conveyor - Combo Grain B. Wall Stiffener Line 4.jpg

ENTRY CONVEYOR

- 20 Ft powered Entry Conveyor to transport Wall Sheets or Stiffeners to Punching Unit

- Custom Length Available

ASC Entry Conveyor - Combo Grain B. Wall Stiffener Line 1.JPG
ASC Punching Combo Grain Bin

MODULAR
PUNCHING SYSTEM

- Servo driven Feed Roll at Entry and Exit

- Quick Change Punch Die Sets for Wall Sheet and Stiffener Profile

- Subgagged Punches to maximize Flexibility

- Hydraulic Power Unit

- Capacity Range: 10 - 20 Gauge

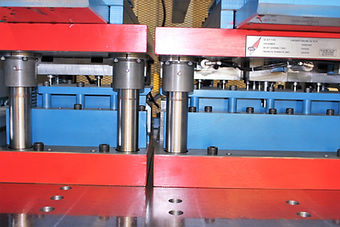

ASC Punch Die Set - Grain B. Wall Stiffener Line 2.jpg
ASC Entry Conveyor - Combo Grain B. Wall Stiffener Line 2.jpg

EXIT CONVEYOR

- 20 Ft powered Exit Conveyor

- Custom Length Available

- Optional Inline Curver for Wall Sheets

ASC Exit Conveyor and Curver - Grain bin Wall Sheet.JPG
