TECHNOFOLD®

ASC TECHNOFOLD ®

TECHNOFOLD 64L (21ft, max 18 ga mild steel)

Built to withstand the rigors of daily trim shop operations, ASC TechnoFold® Trim Folders feature heavy-duty weldments, hinges, and hydraulics. The box-frame design reduces torsion more than the torsion bars used by industry competition.

The included programmable ASC touchscreen controller automatically adjusts for all four axes and has a large memory capacity. With options like an adjustable rail-mounted hemming head and slitter, the ASC TechnoFold® offers additional versatility.

ASC also offers the TechnoFold® also with an optional AMS Pathfinder Controller including SmartPath auto-sequencing, Profile sketching and more.

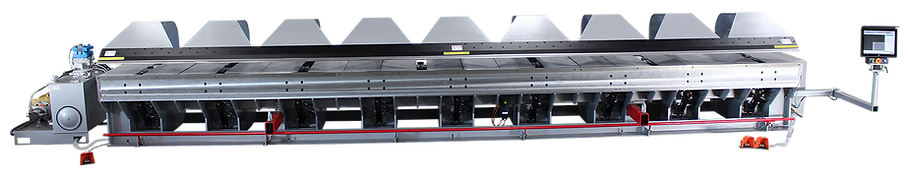

TECHNOFOLD 85M (28ft, max 14 ga mild steel)

Provide your customers with the highest-quality trim shapes by building your trim shop around an ASC TechnoFold® Trim Folder.

PICTURE GALLERY

 L-Model

(up to 18ga mild steel)

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Trim Folder - Made in USA

ASC TechnoFold (Brake)

ASC TechnoFold (Brake)

21ft Trim Folder - Made in USA

ASC TechnoFold (Brake)

ASC TechnoFold (Brake)

21ft Trim Folder - Made in USA

ASC TechnoFold (Brake)

ASC TechnoFold (Brake)

With AMS Pathfinder Controller

ASC TechnoFold (Brake)

ASC TechnoFold (Brake)

Auto Back Gauge - 21ft Trim Folder - Made in USA

ASC TechnoFold (Brake)

ASC TechnoFold (Brake)

21ft Trim Folder - Made in USA - Double Box rectangular backbone to eliminate flexing

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Folder (Brake) with AMS Pathfinder Controller

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

High strength steel Clamping Beam - 21ft Trim Folder - Made in USA

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Option power driven rail assembly for Slitting and/or Hemming Head

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

ASC Folder with ASC Touchscreen Controller

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Folder with Double Box rectangular backbone design to eliminate flexing

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

High Strength Camping Beam

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Folder Backgauge, 39.5-in (1M) capacity behind clamping beam

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Unique fixed-displacement pump with electronic variable speed drive

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Open height is a full 9” for handling deep sections

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Trim Folder - Made in USA (Hydraulic Power Unit)

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Trim Folder - Made in USA

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Quick Change Slitting Head - Trim Folder - Made in USA

ASC TechnoFold 64L (Brake)

ASC TechnoFold 64L (Brake)

Quick Change Hemming Head

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

28ft Folder for up to 14ga mild steel - Made in USA

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

28ft Folder for up to 14ga mild steel - Made in USA

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

28ft Folder for up to 14ga mild steel - Made in USA

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

28ft Folder for up to 14ga mild steel - Made in USA

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

28ft Folder for up to 14ga mild steel - Made in USA

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

Hydraulic Power Unit for 28ft Folder for up to 14ga mild steel - Made in USA

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

ASC Heavy Duty Hinges

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

High Strength Claming Beam for Purlin bending

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

High Strength Claming Beam for Purlin bending

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

Optional AMS Controller with Pathfinder Software

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

Optional AMS Controller with Pathfinder Software

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

Double Foot-Switch

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

Kick-Bar Safety Feature

ASC Technofold 85M (Brake)

ASC Technofold 85M (Brake)

Double Foot-Switch

 M-Model

(up to 14ga mild steel)

TECHNOFOLD

FEATURES:

- Available in folding lengths of 10'6", 14'10", 21' and 28'

- 18-gauge or 14-gauge capacity (mild steel)

- High strength steel Clamping Beam

- Auto back-gauging option with control of all positioning fingers

- Precision encoder positioning ensures bending accuracy and repeatability

- One hydraulic cylinder per c-frame to distribute forces evenly across part length

- Box-frame design to reduce frame torsion

- 50% to 100% heavier than competing trim folders, limits deflection to improve part tolerances

- AUTO-Cycle function available to increase production

- Programmable open height for maximum throughput

- Unique fixed-displacement pump with electronic variable speed drive provides metered pump flow upon demand for optimum operating efficiency and low noise

- Low pressure (1500psi or less) system provides longer component life and minimizes leaks associated with high pressure systems

- 1 or 2 person (selectable) foot pedal-actuated clamping and apron controls

- ASC Touchscreen Controller

- Part library with100-profile capacity, 15 bends per profile, controls all (4) axes (back gauge, ram, apron, bend allowance)

ASC Technofold Touchscreen Controller
ASC Technofold Brake Touchscreen
ASC Technofold Brake Touchscreen
ASC Technofold Brake Touchscreen

OPTIONS:

ASC Technofold 64L AMS
AMS Pathfinder Simulation profile

AMS PATHFINDER Controller

Enhanced SmartPath™ Automatic Sequencing, Profile sketching, profile library and more.

Slitting head

with power driven

rail assembly

Hemming head

with power driven

rail assembly
