GRAIN BIN
SIDEWALL PANEL LINES
ASC Machine Tools designs and manufactures coil-fed and sheet-fed Sidewall Rollforming Lines for the Grain Bin Industry.
​
Our fully automated modular punching units and heavy duty rollformer produce corrugated Wall Panels (Body Sheets) with a material thickness of up to 5 Gauge!
​
Down below you will get an overview of the typical Line Components in a Wall Sheet Rollforming Line.
Please contact us so to discuss all available options for your specific production requirements!
UNCOILER & COIL CAR
- 20,000 LB Capacity
- Hydraulic Expansion
- Drag Brake Style
- Optional Coil Car
- Perimeter Safety Guarding (Depending on Gauge Range)
PEELER TABLE & STRAIGHTENER
- Telescoping Peeler Table
- 5-Roll Straightener
- Optional "Nose" Bender
- Up to 5 Gauge Max. Capacity
​

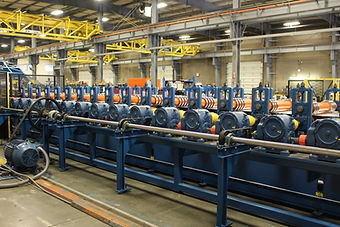

POST-CUT ROLLFORMER
- Gearbox Drive System
- Variable Speed
- Up to 5 Gauge Max. Capacity
- Optional Auto-Gauge
- Roller Die Tooling for 4" or 2-2/3" corrugation pitched body sheets
- Auto-Gauge for Tooling (Optional)
- Hydraulic Post-Cut Shear
- Material Thickness Detection (Optional)
​
MODULAR PUNCHING SYSTEM
- 4-Post Punch Die Sets
- Convex and Concave punch buttons to minimize hole distortion and movement
- Punch and Button car setup for fast changeover between gauges and hole sizes
- Servo-Feed Roll In-Feed System
- Optional Conveyor System with servo positioned Gripper System
- Slug Conveyor (Optional)
​
​
STACKING SYSTEM
- Magnetic Pick & Place Stacker
- Fully Automated Side Transfer
- Custom Length available
​
WALL SHEET CURVER
- Inline: Conveyor and Curver positoned at exit of Modular Punching Unit
- Offline: Manual feeding of sheets or semi-automatic Pick & Place Stacker
​
