C/Z PURLIN STACKER

TM

A PATENTED DESIGN BY ASC

(U.S. Patent No. 10,196,218 B2)

The ASC C/Z Purlin Stacker is a patented design by ASC Machine Tools, Inc.

This fully automatic stacking system can handle the industries full range of Cee, U and Zee purlins and can be added to any new or existing purlin rollforming line!

Designed for high-volume purlin producers this stacker will give the high level of flexibility you are searching for.

And the best, all of our equipment is made in Spokane,WA USA!

CONTROLS

The C/Z Purlin Stacker is controlled via ASC Touchscreen controller which allows the operator an easy set up.



The Part Library delivers valuable information about bundle sizes, dimensions and weight.

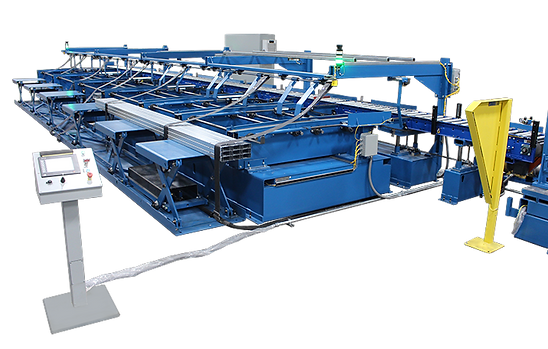

CZ Purlin Stacker Controller ASC
ASC Purlin Stacker Patented

LENGTH

Our Purlin Stacker is available in length of 20,30,40, 50 and 60ft and will be build to fit your specific application.



C-Purlin can exit the rollformer either legs up or legs down.

CZ Purlin Stacker- ASC Machine Tools Pat
ASC CZ Purlin Stacking Patented
IMG_9059 (2).jpg

SPEED

Cycle times are typically between 5 and 9 seconds!

Even shorter cycle times may be available depending on the application, e.g. rollformer line speed, part length, profile shape and material thickness.

ASC's "C-Only" and "Z-Only " Stacking systems for flying post-cut Purlin lines allow speeds of up to 250 FPM.

PART SIZES

Our standard C/Z Purlin Stacker handles the following part sizes:

- C-Purlins: Web 4-16", Flange 2-5", Lips up to 1"

- Z-Purlins: Web 4-16", Flange 2-5", Lips up to 1"

- U-Channel: Web 4-16", Flange 2-5"

- OMEGA-Purlin

Purlin Stacker C Purlin
CZ Purlin Stacking System ASC Machien To
S-Web Stacker

XL-WEB & S-WEB

Customers can add the option to stack wider C & Z-Purlin with up to 24" web width.

Smaller part sizes with 2" or 3" web width can also be added upon request!

XL Web 24In Purlin Stacking
IMG_6907 (2).jpg
Side Transfer Conveyor Purlin Stacker

SIDE TRANSFER

& STAGING

ASC's side transfer conveyors are divided into multiple zones.



The system allows the staging for up to 3 bundles.

MORE

OPTIONS

ASC offers a variety of additional options to monitor your production, increase productivity and safety:

- E-WON Remote Access

- Camera System with Remote Access

- Bundle Tag Printer

- Custom Perimeter Guarding

... and more!

Production Monitoring Purlin Stacker
